`eof` documentation

The `eof` function gives eigenmode maps of variability and corresponding principal component time series for spatiotemporal data analysis. This function is designed specifically for 3D matricies of data such as sea surface temperatures where dimensions 1 and 2 are spatial dimensions (e.g., lat and lon; lon and lat; x and y, etc.), and the third dimension represents different slices or snapshots of data in time.

See also: `reof`.

Back to Climate Data Tools Contents.

## Contents

- Syntax
- Description
- A simple example
- TUTORIAL: From raw climate reanalysis data to ENSO, PDO, etc.
- Average sea surface temperature
- Global warming
- Remove the global warming signal
- Remove seasonal cycles
- Calculate EOFs
- Optional scaling of Principal Components and EOF maps
- El Niño Southern Oscillation (ENSO) time series
- ENSO in the frequency domain
- Maps of variability
- Make a movie of SST variability from EOFs
- A note on interpreting the explained variance.
- How I got the sample data
- References
- Author Info

## Syntax

eof_maps = eof(A) eof_maps = eof(A,n) eof_maps = eof(...,'mask',mask) [eof_maps,pc,expvar] = eof(...)

## Description

`eof_maps = eof(A)` calculates all modes of variability in `A`, where `A` is a 3D matrix whose first two dimensions are spatial, the third dimension is temporal, and data are assumed to be equally spaced in time. Output `eof_maps` have the same dimensions as `A`, where each map along the third dimension represents a mode of variability order of importance.

`eof_maps = eof(A,n)` only calculates the first `n` modes of variability. For large datasets, it's computationally faster to only calculate the number of modes you'll need. If `n` is not specified, all EOFs are calculated (one for each time slice).

`eof_maps = eof(...,'mask',mask)` only performs EOF analysis on the grid cells represented by ones in a logical `mask` whose dimensions correspond to dimensions 1 and 2 of `A`. This option is provided to prevent solving for things that don't need to be solved, or to let you do analysis on one region separately from another. By default, any grid cells in `A` which contain *any* NaNs are masked out.

`[eof_maps,pc,expvar] = eof(...)` returns the principal component time series `pc` whose rows each represent a different mode from 1 to `n` and columns correspond to time steps. For example, `pc(1,:)` is the time series of the first (dominant) mode of varibility. The third output `expvar` is the percent of variance explained by each mode. See the note below on interpreting `expvar`.

## A simple example

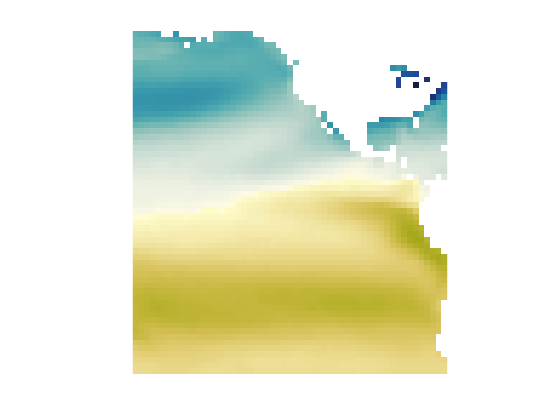

Here's a quick example of how to use the `eof` function. Proper EOF analysis requires detrending and deseasoning the data before calculating EOFs, and those steps are described in the tutorial below, but for now let's just pretend this sample dataset is ready to be analyzed. Load the sample data, then calculate the first EOF.

Here I'm plotting the first EOF map using the `cmocean` *delta* colormap (Thyng et al., 2016) with the `'pivot'` argument to ensure it's centered about zero.

% Load sample data: load pacific_sst.mat % Calculate the first EOF of sea surface temperatures and its % principal component time series: [eofmap,pc] = eof(sst,1); % Plot the first EOF map: imagescn(lon,lat,eofmap); axis xy image off % Optional: Use a cmocean colormap: cmocean('delta','pivot',0)

That's the first EOF of the SST dataset, but since we haven't removed the seasonal cycle, the first EOF primarily represents seasonal variability. As evidence that the pattern above is associated with the seasonal cycle, take a look at the corresponding principal component time series.

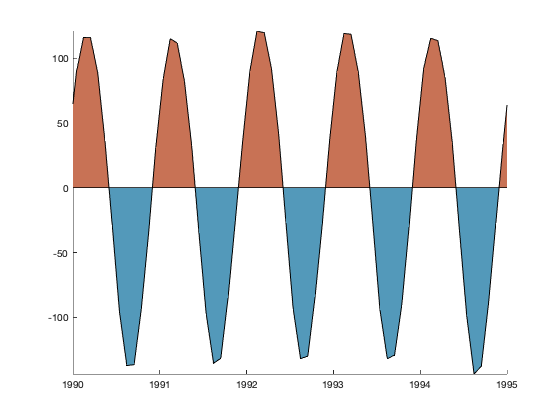

figure anomaly(t,pc) axis tight xlim([datenum('jan 1, 1990') datenum('jan 1, 1995')]) datetick('x','keeplimits')

That looks pretty seasonal to me.

## TUTORIAL: From raw climate reanalysis data to ENSO, PDO, etc.

CDT comes with a sample dataset called `pacific_sst.mat`, which is a downsampled subset of the Hadley Centre's HadISST sea surface temperature dataset. At the end of this tutorial there's a section which describes how I imported the raw NetCDF data into Matlab and the process I used to subset it. If you follow along with this tutorial from top to bottom you should be able to apply EOF analysis to any similar dataset.

If you haven't already loaded the sample dataset, load it now and get an idea of its contents by checking the names and sizes of the variables:

```
load pacific_sst.mat
whos
```

Name Size Bytes Class Attributes eofmap 60x55 26400 double lat 60x1 480 double lon 55x1 440 double pc 1x802 6416 double sst 60x55x802 21172800 double t 802x1 6416 double

So we have a 3D `sst` matrix whose dimensions correspond to lat x lon x time. What time range, and what are the time steps, you ask? Let's take a look at the first and last date, and the average time step:

datestr(t([1 end])) mean(diff(t))

ans = 2×20 char array '15-Jan-1950 12:00:00' '15-Oct-2016 12:00:00' ans = 30.4370

## Average sea surface temperature

Okay, so this is monthly data, centered on about the 15th of each month, from 1950 to 2016. To get a sense of what the dataset looks like, display the mean temperature over that time. I'm using `imagescn`, which automatically makes NaN values transparent, but you can use `imagesc`, `pcolor`, or any equivalent mapping toolbox functions if you prefer. I'm also using the `cmocean` *thermal* colormap (Thyng et al., 2016):

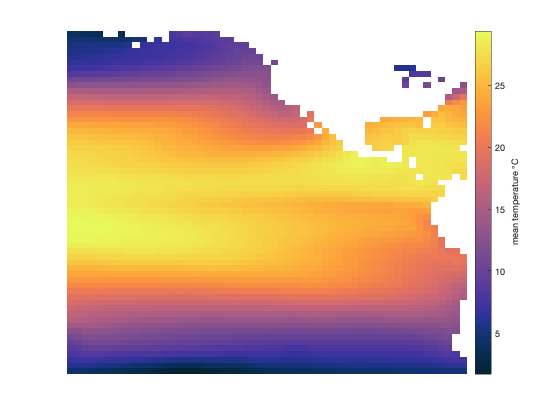

figure imagescn(lon,lat,mean(sst,3)); axis xy off cb = colorbar; ylabel(cb,' mean temperature {\circ}C ') cmocean thermal

## Global warming

Is global warming real? The `trend` function lets us easily get the linear trend of temperature from 1950 to 2016. Be sure to multiply the trend by 10*365.25 to convert from degrees per day to degrees per decade:

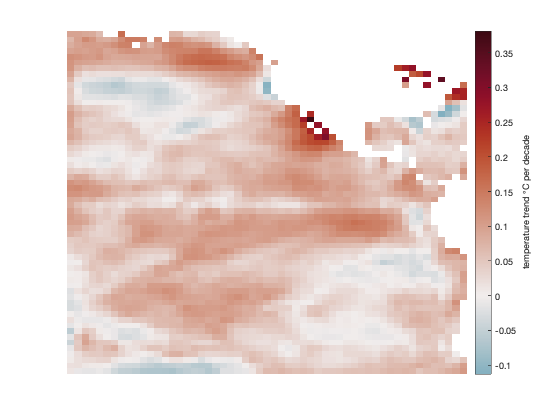

imagescn(lon,lat,10*365.25*trend(sst,t,3)) axis xy off cb = colorbar; ylabel(cb,' temperature trend {\circ}C per decade ') cmocean('balance','pivot')

## Remove the global warming signal

The global warming trend is interesting, but EOF analysis is all about variablity, not long-term trends, so we must remove the trend by `detrend3`:

sst = detrend3(sst,t);

## Remove seasonal cycles

If you plot the temperature trend again, you'll see that it's all been reduced to zero, with perhaps a few eps of numerical noise. Now that's an SST dataset that even Anthony Watts would approve of.

We have now detrended the SST dataset (which also removed the mean), but it still contains quite a bit of seasonal variability that should be removed before EOF analysis because we're not interested in seasonal signals.

sst = deseason(sst,t);

So now our `sst` dataset has been detrended, the mean removed, and the seasonal cycle removed. All that's left in `sst` are the anomalies--things that change, but are not long-term trends or short-term annual cycles. Here's the remaining variance of our `sst` anomaly dataset:

figure imagescn(lon,lat,var(sst,[],3)); axis xy off colorbar title('variance of temperature') colormap(jet) % jet is inexcusable except when recreating old plots caxis([0 1])

The map above lines up quite well with Figure 2a of Messie and Chavez (2011), which tells us we're on the right track.

## Calculate EOFs

EOF analysis lets us understand not only where things vary, but how often, and what regions tend to vary together or out of phase with each other. With our detrended, deseasoned `sst` dataset, EOF analysis is this simple with the `eof` function:

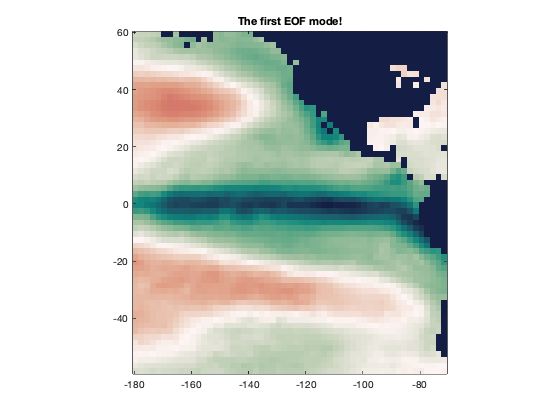

[eof_maps,pc,expv] = eof(sst); % Plot the first mode: figure imagesc(lon,lat,eof_maps(:,:,1)) axis xy image cmocean('curl','pivot') title 'The first EOF mode!'

Eigenvector analysis has a funny behavior that can produce EOF maps which are positive or negative, and the solutions can come up different every time using the same exact inputs. Positive and negative solutions are equally valid -- think of the modes of vibration of a drum head where some regions of the drum head go up while other regions go down, and then they switch -- and likewise the eigenvalue solutions of SST variability might be positive or negative. The only thing that matters is that when we reconstruct a time series from an EOF solution, we multiply each EOF map by its corresponding principal component (`pc`).

The `eof` function is written to produce consistent results each time you run it with the same data, but don't worry if the sign of a solution does not match the sign of someone else's results if they used a different program to calculate EOFs--that just means their program picked the opposite-sign solution, and that's perfectly fine.

Just as EOF maps can have positive or negative solutions and both are equally valid, there's some flexibility in how the magnitudes of EOF maps are displayed. You can multiply the magnitude of an EOF map by any value you want, just as long as you divide the corresponding principal component time series by the same value. Let's take a look at the time series of the first three modes of variability, plotting with `subsubplot`:

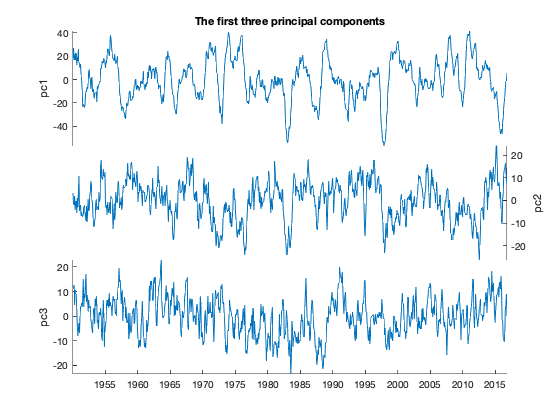

figure subsubplot(3,1,1) plot(t,pc(1,:)) box off axis tight ylabel 'pc1' title 'The first three principal components' subsubplot(3,1,2) plot(t,pc(2,:)) box off axis tight set(gca,'yaxislocation','right') ylabel 'pc2' subsubplot(3,1,3) plot(t,pc(3,:)) box off axis tight ylabel 'pc3' datetick('x','keeplimits')

## Optional scaling of Principal Components and EOF maps

Those principal component time series are fine just the way they are, but some folks prefer to scale each time series to span a desired range. Looking at Figure 5 of Messie and Chavez (2011), it seems they chose to scale each principal component time series such that it spans the range -1 to 1. Let's do the same thing, divide each principal component time series by its maximum value and don't forget to multiply the corresponding EOF map by the same value:

for k = 1:size(pc,1) % Find the the maximum value in the time series of each principal component: maxval = max(abs(pc(k,:))); % Divide the time series by its maximum value: pc(k,:) = pc(k,:)/maxval; % Multiply the corresponding EOF map: eof_maps(:,:,k) = eof_maps(:,:,k)*maxval; end

## El Niño Southern Oscillation (ENSO) time series

The first mode of detrended, deseasoned SSTs is assoiciated with ENSO. We can plot the time series again as a simple line plot, but anomaly plots are often filled in. Let's use `anomaly` to plot the first mode, and multiply by -1 to match the sign of Figure 5 of Messie and Chavez (2011).

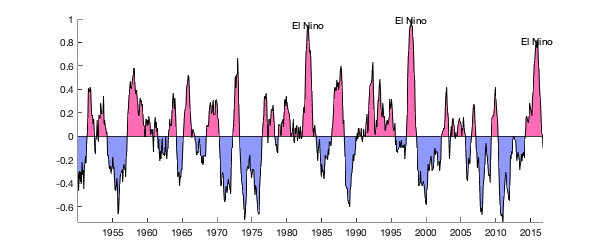

figure('pos',[100 100 600 250]) anomaly(t,-pc(1,:),'topcolor',rgb('bubblegum'),... 'bottomcolor',rgb('periwinkle blue')) % First principal component is enso box off axis tight datetick('x','keeplimits') text([724316 729713 736290],[.95 .99 .81],'El Nino','horiz','center')

Sure enough, some of the strongest El Nino events on record took place in 1982-1983, 1997-1998, and 2014-2016. For more ways to investigate ENSO, check out the `enso` function.

## ENSO in the frequency domain

Sometimes we hear that El Nino has a characteristic frequency of once every five years, or five to seven years, or sometimes you hear it's every two to seven years. It's hard to see that in the time series, so we plot the first principal component in the frequency domain with `plotpsd`, specifying a sampling frequency of 12 samples per year, plotted on a log x axis, with x values in units of lambda (years) rather than frequency:

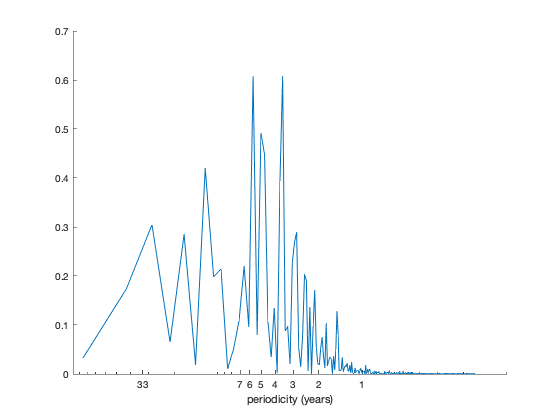

figure plotpsd(pc(1,:),12,'logx','lambda') xlabel 'periodicity (years)' set(gca,'xtick',[1:7 33])

As you can see, the ENSO signal does not have a sharply defined resonance frequency, but there's energy in that whole two-to-seven year range. I also labeled the 33 year periodicity because that's Nyquist for this particular dataset--any energy with a longer period than Nyquist (or anywhere near it) should probably be considered junk.

## Maps of variability

EOFs aren't just about time series--they're about spatial patterns of variability through time. Each mode has a characteristic pattern of variability just like the different modes of vibration of a drum head. At any given time, the different modes can be summed to create a total picture of temperature anomalies at that time. The *orthogonal* part of Empirical Orthogonal Function means each of the modes tend to do their own thing, independent of the other modes. Let's look at the first six modes by recreating Figure 4 of Messie and Chavez (2011) . I'm multiplying some of the modes by negative one because I want to match their signs, and remember, we're allowed to do that.

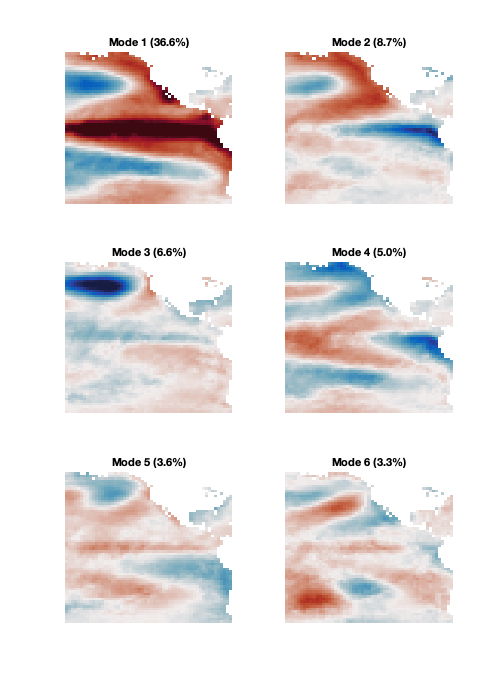

s = [-1 1 -1 1 -1 1]; % (sign multiplier to match Messie and Chavez 2011) figure('pos',[100 100 500 700]) for k = 1:6 subplot(3,2,k) imagescn(lon,lat,eof_maps(:,:,k)*s(k)); axis xy off title(['Mode ',num2str(k),' (',num2str(expv(k),'%0.1f'),'%)']) caxis([-2 2]) end colormap jet

The percent variance explained by each mode does not match Messie and Chavez because we're using a much shorter time series than they did and we're also using a spatial subset of the world data. Nonetheless, patterns generally agree.

The `jet` colormap is not exactly the same one used by Messie and Chavez, which explains why some of the patterns above may look slightly different from Messie and Chavez. But since we're talking about colormaps, rainbows are actually quite bad at representing numerical data (Thyng et al, 2016). It's also a shame for science that we can't exactly replicate the plot without knowing exactly what colors were used in the published version, but I digress...

Given that these maps represent anomalies, they should be represented by a divergent colormap that gives equal weight to each side of zero. Let's set the colormaps of all the subplots in this figure to something a little more balanced:

```
colormap(gcf,cmocean('balance'))
```

## Make a movie of SST variability from EOFs

At any given time, a snapshot of sea surface temperature anomalies associated with ENSO can be obtained by plotting the map of mode 1 shown above, multiplied by its corresponding principal component (the vector `pc(1,:)`) at that time. Similarly, you can get a picture of worldwide sea surface temperature anomalies at a given time by summing all the EOF maps, each multiplied by their corresponding principal component at that time. In this way we can build a more-and-more complete movie of SST anomalies as we include more and more more modes of variability.

For example, a map of SST anomalies associated with the first three modes of variability, for a specified time, can be obtained by summing the eof maps of each of those modes, multiplied by their corresponding pc values for that time. You can do the summing manually, say, for the 1990's like this:

% Indices of start and end dates for the movie: startind = find(t>=datenum('jan 1, 1990'),1,'first'); endind = find(t<=datenum('dec 31, 1999'),1,'last');

% A map of SST anomalies from first three modes at start: map = eof_maps(:,:,1)*pc(1,startind) + ... % Mode 1, Jan 1990 eof_maps(:,:,2)*pc(2,startind) + ... % Mode 2, Jan 1990 eof_maps(:,:,3)*pc(3,startind); % Mode 3, Jan 1990

However, that's more complicated than necessary, because the `reof` function is designed to do the summing for us. Make an sst anomaly time series for the first three modes like this:

sst_f = reof(eof_maps,pc,1:3);

Now plot the January 1990 map as the first frame in a movie:

ind_1990s = 481:3:600; % (every third value to cut down on gif size)

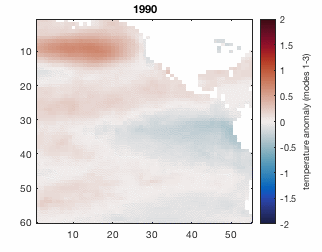

figure h = imagescn(sst_f(:,:,ind_1990s(1))); caxis([-2 2]) cmocean balance cb = colorbar; ylabel(cb,'temperature anomaly (modes 1-3)') title(datestr(t(ind_1990s(1)),'yyyy'))

gif('SSTs_1990s.gif','frame',gcf) % writes the first frame

for k = 2:length(ind_1990s) h.CData = sst_f(:,:,ind_1990s(k)); title(datestr(t(ind_1990s(k)),'yyyy')) gif % adds this frame to the gif end

The first thing you probably notice is that the 1990s SST anomaly time series is dominated by ENSO, and check out that 1997-1998 signal! No wonder it was such a hot topic in the news that year. Nonetheless, it's important to remember that the movie above is not a complete reconstruction of the SST anomalies, but rather only the first three modes, which together account for

sum(expv(1:3))

ans = 51.8850

...just over half of the total variance of the SST dataset. To reconstruct the absolute temperature field rather than just anomalies from the first three modes, you'd need to include all the EOF maps, and you'd also have to add back in the mean SST map, the trend, and the seasonal cycle.

## A note on interpreting the explained variance.

Above, we solved all 802 modes of a time series containing 802 time steps. Together, those modes explain 100% of the total variance in the `sst` dataset. That means we could add all those 802 modes together, multiplied by their principal components, and fully reconstruct the time series without any lost information. See, the sum of the explained variance...

sum(expv)

ans = 100.0000

...is 100 percent. For this dataset and most other real-world datasets with natural modes of variability, the first few modes will carry most of the information and everything else should probably be ignored. Sometimes it is insightful to look at the explained variance as a function of mode number, or as is also common, the cumulative explained variance. Let's plot both:

figure subplot(2,1,1) plot(expv) axis([0 802 0 37]) box off ylabel 'variance explained per mode' subplot(2,1,2) plot(cumsum(expv)) axis([0 802 0 100]) ylabel 'cumulative variance explained' xlabel 'mode number' box off

The plots above indicate that the first three modes account for more than half the variance in the detrended, deseasoned SST dataset, and everything else just adds tiny incremental improvements that get us just a little bit closer to reconstructing the full original dataset.

As a general rule of thumb, I tend to think of anything past about the third or fifth mode to be somewhat of a Rorschach test that might trick you into believing there's meaningful signal, but be careful with trying to interpret those *Nth* order modes--Even in this simple dataset, there are 802 modes, meaning there's probably at least one mode in there that can seem to explain just about any crazy theory you might have. In other words, be mindful of the potential for p-hacking when interpreting EOFs.

Most of the 802 modes we solved for in the example above, each contribute a very small amount to the overall SST variability and are probably physically meaningless, so there's no sense in using so much computer power to solve for all those modes. If your dataset is very large, it will be much faster and will use less memory to solve for just the modes you need. There's only one small catch...

% Solve all modes: [eof_maps_all,pc_all,expv_all] = eof(sst); % Solve for just the first 10 modes: [eof_maps_10,pc_10,expv_10] = eof(sst,10);

We've just solved for the first 10 modes, and we see that the EOF maps and the principal component time series are on agreement with the solutions obtained by solving all 802 modes:

figure subplot(1,2,1) imagescn(eof_maps_all(:,:,1)-eof_maps_10(:,:,1)) colorbar cmocean('balance','pivot') subplot(1,2,2) plot(pc_all(1,:)-pc_10(1,:)) axis tight

Both plots above show purely numerical noise. There is some apparent structure to them, but check out the cale of the color axis on the left (10^-17) and the y axis on the right (10^-14). That's rounding error which results from the fact that Matlab digitizes the numbers it works on, and it's common for the magnitude of rounding errors to track the magnitudes of the numbers that are being rounded.

So although there's a little bit of numerical noise, the solutions when solving for all 802 modes are the same as the solutions when solving for just 10 modes. Great. Until we look into the explained variance:

figure plot(expv_all(1:10),expv_10,'o') hold on plot([0 50],[0 50]) % straight line (both values equal) axis equal xlabel 'explained variance (all 802 solutions') ylabel 'explained variance (10 solutions')

The explained variances do not match, because `expv` provides a measure of percentage of variance *of the modes that were solved in a given run*. That is, if we solve for all 802 modes, the sum of the variance explained by the first 10 modes will not equal 100%:

sum(expv_all(1:10))

ans = 73.4559

However, since we only solved the first 10 modes to get `expv_10`, their sums will equal 100%

sum(expv_10(1:10))

ans = 100.0000

because those 10 modes explain 100% of the variance related to those 10 modes. That's somewhat circular logic, I know, so what good are the values of explained variance if you're only solving for a few modes? Maybe they aren't that good at all. The best thing you can do is use a long time series, solve for all the modes, and then look at the explained variances to see where they asymptote.

If you can only solve for a few modes due to computational limitations, you can still get some sense of whether you've gotten the full picture by plotting the cumulative sum of the explained variance from whatever modes you did solve for:

figure plot(cumsum(expv_10),'o-') xlabel 'mode number' ylabel 'cumulative sum of explained variance (%)' ntitle({'Only solving for a few modes might trick you';... 'into believing you''ve captured all the variance...'})

Of course the final value on that plot is 100% (which we know really means 100% of about 73.5% for this dataset), so the 100% value doesn't tell us much on its own, although we can see that it clearly doesn't reach much of an asymptote before getting to 100%, indicating that there's more to the story...

Sorry I don't have a tidier solution to that issue right now, but hopefully this little explainer gives a better understanding of what the `eof` function can and can't tell you.

## How I got the sample data

The example dataset shown above comes from the Hadley Center HadISST, found here (Rayner et al., 2003) which in full exceeds 200 MB. If you'd like to perform the the same kind of analysis on a different region of the world, you can download the HadISST_sst.nc dataset and import it into Matlab like this. Downsampling or subsetting the dataset are up to you:

% Load the full SST dataset: lat = double(ncread('HadISST_sst.nc','latitude')); lon = double(ncread('HadISST_sst.nc','longitude')); t = double(ncread('HadISST_sst.nc','time')+datenum(1870,1,0)); sst = ncread('HadISST_sst.nc','sst');

% To quarter the size of the sample dataset, I crudely downsample to every other grid point: sst = sst(1:2:end,1:2:end,:); lat = lat(1:2:end); lon = lon(1:2:end);

% To further reduce size, I clipped to a range of lats and lons and kept only post-1950 data: rows = lon<-70; lon = lon(rows); cols = lat>=-60 & lat<=60; lat = lat(cols); times = t>=datenum('jan 1, 1950'); t = t(times); sst = sst(rows,cols,times); sst(sst<-50) = NaN;

% I find it easier to rearrange as lat x lon x time: sst = permute(sst,[2 1 3]);

% Save the sample data: save('PacOcean.mat','lat','lon','t','sst')

## References

Messié, Monique, and Francisco Chavez. "Global modes of sea surface temperature variability in relation to regional climate indices." Journal of Climate 24.16 (2011): 4314-4331. doi:10.1175/2011JCLI3941.1.

Rayner, N. A., Parker, D. E., Horton, E. B., Folland, C. K., Alexander, L. V., Rowell, D. P., Kent, E. C., Kaplan, A. (2003). Global analyses of sea surface temperature, sea ice, and night marine air temperature since the late nineteenth century. J. Geophys. Res.Vol. 108, No. D14, 4407 doi:10.1029/2002JD002670.

Thyng, K.M., C.A. Greene, R.D. Hetland, H.M. Zimmerle, and S.F. DiMarco. 2016. True colors of oceanography: Guidelines for effective and accurate colormap selection. Oceanography 29(3):9-13, doi:10.5670/oceanog.2016.66.

## Author Info

The `eof` function was written by Chad A. Greene of the University of Texas Institute for Geophysics (UTIG) in January 2017, but leans heavily on Guillame MAZE's `caleof` function from his PCATool contribution. This tutorial was written by Chad Greene with help from Kaustubh Thirumalai.
